Protect set tops, modems and subscribers equipment
The DLPS-15D offers longer life, greater current handling capacity and faster response than any other type of protection.

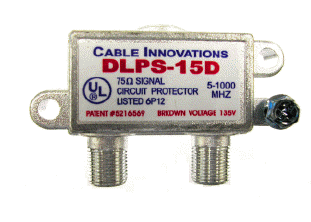

Developed and patented by Cable Innovations the 1GHz DLPS-15D protects drop line electronics from damaging faults due to surges, transients, spikes and lightning. The DLPS-15D, using dual direction Sidactor technology, protects in both directions from the house and from the cable drop line. With a trigger sensing time of one nanosecond, the DLPS-15D will virtually eliminate damage to drop line electronics caused by over voltages.
If you are currently using Zener diodes, gas discharge tubes, MOVs or just a ground block, you are taking unnecessary risks with your equipment and with your subscriber electronics.
Application:
- Any drop, replaces ground block.
Features:
- Solid state surge protection, for reliability and durability
- High Speed Sidactor®
- Handles 1000 Amps.
- Dual direction protects from the house, and to the house.
- UL approved
- Power Passing the DLPS-15D passes up to 1 amp of power.
- Meets NEC-830-30
