(1) Prepare your cable according to manufacturers specifications, wipe clean and prepare for connection, as earlier outlined in the Cable and Connector Preparation.

(2) Remove the two-piece sleeves from the pouch, intact. Slide both sleeves as one unit over the prepared cable end, and position the sleeves down the cable to allow enough room for connection.

(3) Install connector into housing and onto the cable. Complete connection.

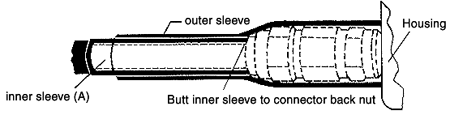

(5) With a slight twisting and pushing motion, slide the outer sleeve up and over the connector, butting the end of the outer sleeve against the housing. Properly installed, a small portion of the inner sleeve (A) is visible at the other end of the outer sleeve. The installation is complete.
